Figure 38: Main Window Talairach widgets.
A subset of the widgets on the Main Window are associated with the Talairach coordinates[5] feature as shown in Figure 38. Pressing the Tala Coor button (38-1) will display the Talairach Coordinates popup window (Figure 39). After the Talairach Coordinates have been configured (See Section 16.1), the Grid option (38-2) can be selected. When it is selected, a Talairach grid is overlayed on top of the currently displayed Main Window images and the Talairach Locn field (26-4) displays the location of the mouse.

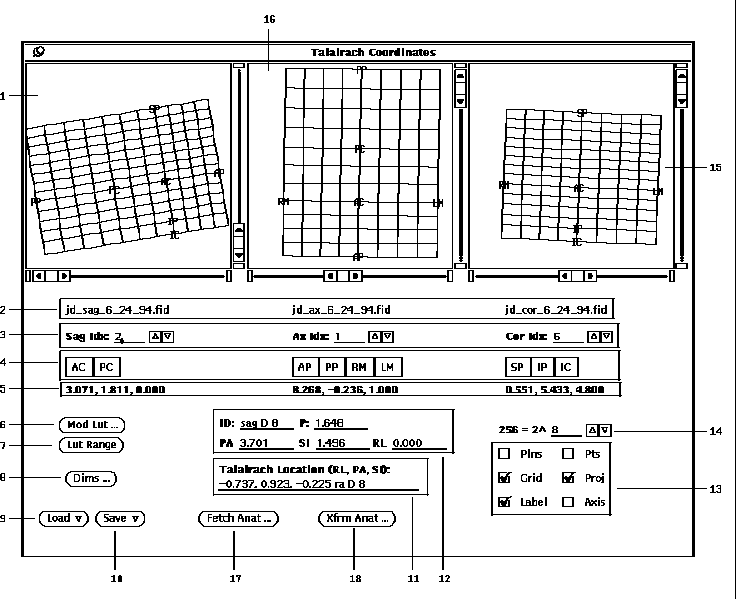

Figure 39: Talairach Coordinates popup window
