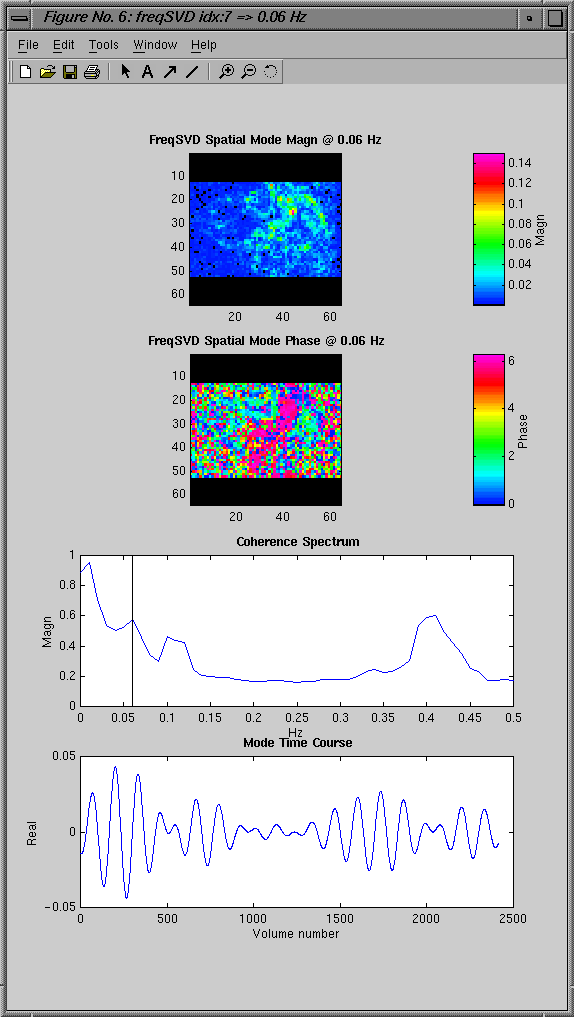

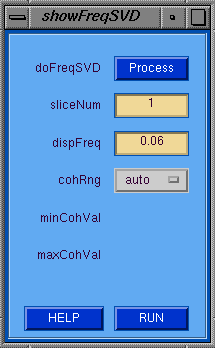

The showFreqSVD is used to view the spatial magnitude and phase images of the mode at the specified frequency along with the mode time course. The coherence spectrum is also ploted with a vertical line is plotted at the frequency specified. First the process button must be pressed to popup the freqSVD window where the SVD can be invoked.

- doFreqSVD --> Popup freqSVD processing window.
- sliceNum --> Slice number to display.
- dispFreq --> Frequency for coherence image to display.
- cohRng --> Method for specifing coherence display range.
- minCohVal --> Minimum coherence display value.
- maxCohVal --> Maximum coherence display value.

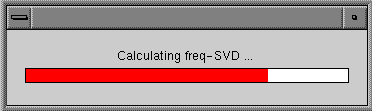

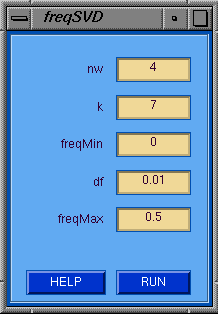

The freqSVD GUI allows for the user to specify the multitaper parameters and the range of frequencies to compute the SVD on. When the RUN button is pressed, the SVD calculation is invoked.

- nw --> Slepian Time-Bandwidth product.
- k --> Number of Slepian tapers (usu. 2nw-1)
- freqMin --> Minimum frequency of fsvd calculation.
- df --> Frequency step for fsvd calculation.
- freqMax --> Maximum frequency of fsvd calculation.
