showTimeSVD

The showTimeSVD GUI is used to view the spatial magnitude
and time series of the leading modes from an SVD.
First the process button must be pressed to popup the
timeSVD window where the SVD can be invoked.  After the
SVD has been calculated, a particular mode can be viewed by
specifing the index in the modeNum field.   For reference,
a vertical line is plotted at the frequency specified in

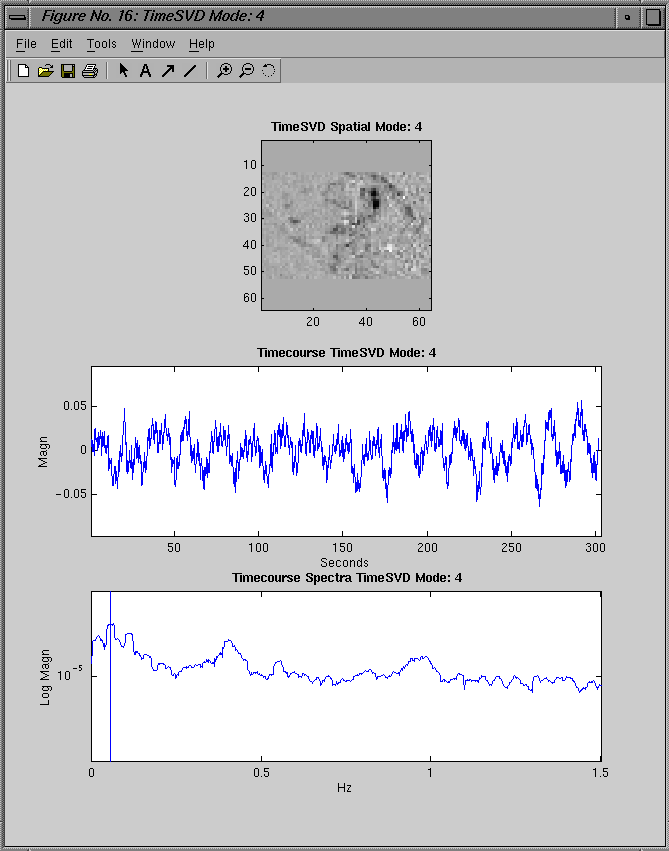

the field lineFreq.  When the RUN button is pressed, a
figure is displayed with an image of the spatial magnitude
along with a plot of both the timeseries and its spectrum
for the specified mode.
