Period Cross Correlation

A Period Cross Correlation (PXC) gives a map as a measure of the correspondence of the shapes of a reference waveform and a functional time course[2], where the reference waveform is defined by periods. The reference waveform is nearly of ``box-car'' form, except that sloping sides may be specified. The t-Test parameter popup window is shown in Figure 19.

   figure766

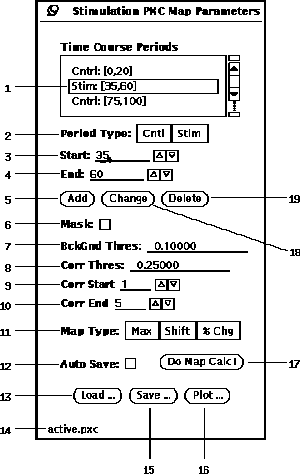

Figure 19: Period Cross Correlation Parameter popup window.

  1. The first step in calculating a PXC map is to populate the list (19-1). This is accomplished by entering a (19-2), time (19-3), time (19-4), and then pressing (19-5). The (19-18) and (19-19) buttons can be used for editing the currently selected period from the list.
  2. A graph of the reference waveform can be displayed by pressing the button (19-16). As shown in Figure 20, the lines at 1.0 show stimulation periods and the lines at 0.0 show control periods. Note that when there is a gap between a control and a stimulation period that the waveform is sloped.
  3. Next, one of two options can be specified to speed up the analysis by limiting which pixels are evaluated. If the checkbox (19-6) is selected, the (19-7) is ignored and only those pixel locations with non-zero values in the currently loaded mask are evaluated. When the Mask option is not selected, then those pixels, whose control period mean value is below the BckGnd Thres value, are not evaluated.
  4. Then specify the (19-8). Only those pixels whose cross correlation is above this threshold will pass and have non-zero map values. A value of zero is used in the map at pixel locations that are not evaluated or whose cross correlation value is less than the threshold. For multiple cross correlations, a pixels time course will be considered to have passed if at least one passes.
  5. When the reference waveform is shorter than the functional time course, multiple cross correlations can be calculated. Each of these multiple cross correlations are calculated with the reference waveform shifted in time by an offset. The offsets are specified by entering a value in the (19-9) and (19-10) fields. Note that both of the offsets must be less than the difference of the lengths between the reference and functional time courses.
  6. There are three choices (19-11). The choice results in the map that reflects the maximum correlation value over all of the shift offsets. The choice results in the map that reflects the shift offset where the maximum correlation value occurs. The shift offset is expressed as a percentage of shift range per Equation 2.

      equation806

    The choice results in a map of the ratio of the average intensity change between the control and stimulation periods per Equation 1.

  7. Prior to calculating the correlation map, the parameters must be saved to a file. Pressing the button (19-15) will popup the file browser (See Section 5). After the parameters are saved, the name of the file will appear in the lower left hand corner (19-14). When any parameter is changed the file name disappears since it is no longer consistent with the contents of the file. However, while a file name is displayed, the option (19-12) can be selected. The AutoSave option will automatically save the parameters to the current file. The button (19-13) can be used to retrieve previously save parameters.
  8. Having all the parameters and options set, pressing the button (19-17) invokes the calculation of the functional map. See Section 9.1 for the details on how to display the map.

   figure827

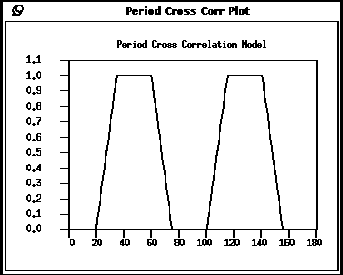

Figure 20: PXC reference waveform plot popup window.
