The Qwik plot window (28-1) initially displays an average time course of the ensemble of time courses from hot pixels in the current ROI. By changing the (28-2) field, the user can sequence through the individual time courses of the ensemble that make up the average. The pixel location of the time course is displayed above the graph (28-8). The (28-7) option allows for the plotting of multiple time courses simultaneously. The option (28-3) allows for either the plot range to be determined automatically or to be fixed as manually entered in the (28-6) and (28-5) fields.

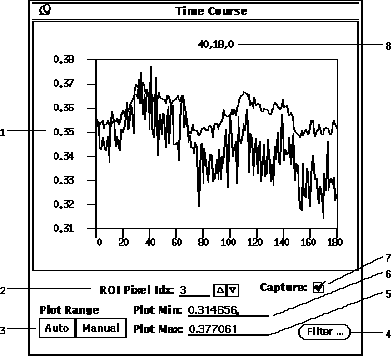

Figure 28: Qwik Time Course plot window.
