Figure 35: Main Window Talairach widgets.
A subset of the widgets on the Main Window are associated with the Talairach coordinates[5] feature as shown in Figure 35. Pressing the button (35-1) will display the popup window (Figure 36). After the Talairach Coordinates have been configured (See Section 16.1), the option (35-2) can be selected. When it is selected, a Talairach grid is overlayed on top of the currently displayed Main Window images and the field (23-3) displays the location of the mouse.

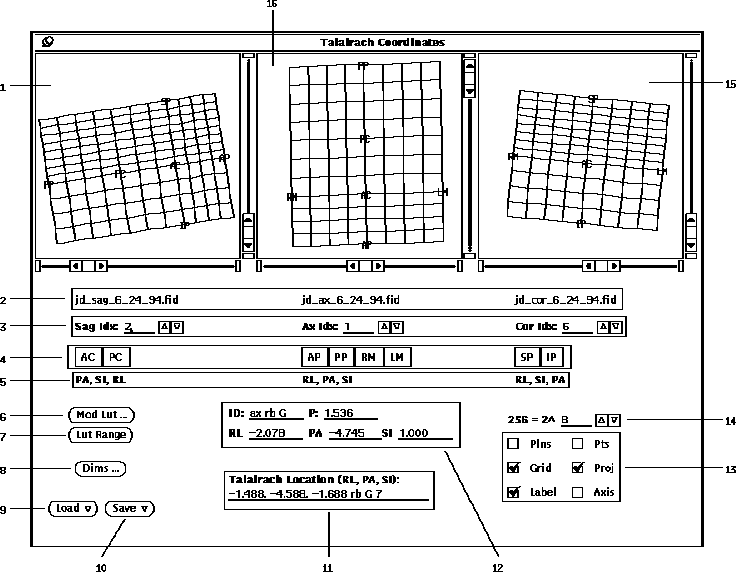

Figure 36: Talairach Coordinates popup window
