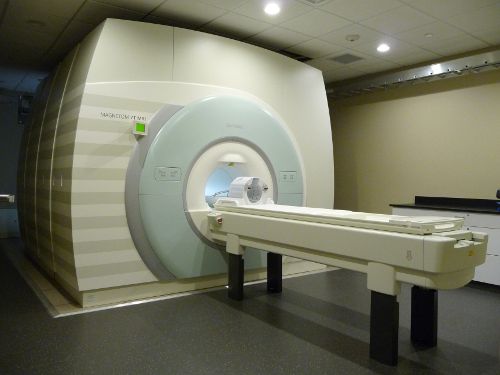

7T/AS: Siemens MAGNETOM 7T Plus

Description

The 7T MAGNETOM Plus system was the first actively shielded whole body 7T scanner in the world, brought online in 2011. This research scanner supports biomedical research both in the brain and in the body, supporting both core research of the Center as well as collaborative and service projects with intra- and extra-mural groups. This system also provides a key platform for engineering developments key to advancing technology critical to advancing the field of UHF MRI.

Magnet Information

Magnet Manufacturer: Agilent
Field Strength: 7.0 Tesla
Shielding: Active
Bore Diameter: 900 mm
Installation Year: 2011
Field Homogeneity: 5.0 (450) ppm (mm)
Total Mass: 42 tons
Windings Length: None km
Windings Material:
Helium Bath Volume: 5000 liters
Stored Energy: 78.9 MJ

Console

Console: Siemens MAGNETOM 7T Plus
Software Platform: VE12

RF Transmit and Receive Information

Number of Receive Channels: 32
Number of Transmit Channels: 16
Transmit Power (per channel): 1 kW
Combined Mode Transmit Power: 8 kW
X-Nuclei Transmit Power: 8 kW

Primary Gradient

Gradient Model: SC72
Maximum Strength: 70 mT/m
Slew Rate: 200 T/m/s
Rise Time: None µs
2nd Order Shims: True (12.5 A/ch)
3rd Order Shims: False

Clinical & Human Subjects

Patient Accessible Bore Size: 600 mm
Bore Length: None mm
Clinical Scans: No
Human Subjects: Yes

Intercoms

Acquisition Peripherals

Stimulus computers

Displays

Matrix Switch

Auditory

Sensimetrics S15
