Terra.X: Siemens MAGNETOM Terra.X 7T

Description

The 7T MAGNETOM Terra was installed in 2020 and is a clinically approved imaging system for head and knee applications. Embedded in the world-renowned CMRR, this system also serves to support numerous biomedical and translational research projects.

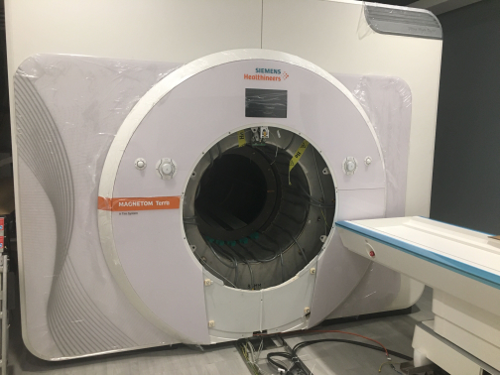

Terra MRI

Magnet Information

  • Magnet Manufacturer: Siemens
  • Field Strength: 7.0 Tesla
  • Shielding: Active
  • Bore Diameter: 840 mm
  • Installation Year: 2020
  • Field Homogeneity: 5.0 (450) ppm (mm)
  • Total Mass: None tons
  • Windings Length: None km
  • Windings Material:
  • Helium Bath Volume: None liters
  • Stored Energy: None MJ

Console

  • Console: Siemens MAGNETOM Terra
  • Software Platform: VE12

RF Transmit and Receive Information

  • Number of Receive Channels: 64
  • Number of Transmit Channels: 16
  • Transmit Power (per channel): 2 kW
  • Combined Mode Transmit Power: 8 kW
  • X-Nuclei Transmit Power: 8 kW

Primary Gradient

  • Gradient Model: SC72
  • Maximum Strength: 70 mT/m
  • Slew Rate: 200 T/m/s
  • Rise Time: None µs
  • 2nd Order Shims: True (20.0 A/ch)
  • 3rd Order Shims: True

Clinical & Human Subjects

  • Patient Accessible Bore Size: 600 mm
  • Bore Length: None mm
  • Clinical Scans: Yes
  • Human Subjects: Yes

Intercoms

  • Avotec Silent Scan Intercom
  • OptoAcoustics Active Noise Cancelling Intercom
  • Siemens Intercom

Acquisition Peripherals

  • Bracco Contrast Injector
  • FIRMM tablet
  • Not Applicable MR Technologist Service Available
  • Skope Field Camera
  • TracInnovations Motion Tracking System

Stimulus computers

  • Mac Stimulus Computer
  • Matlab PsychToolbox
  • PST E-Prime 3
  • PsychoPy 1.83
  • PsychoPy 2023
  • Windows Matrix Control Computer
  • Windows Stimulus Computer

Displays

  • NEC Projector

Matrix Switch

  • Extron 8x8 HDMI Matrix Switch

Auditory

Response pads

Eyetrackers and cameras
