9.4T/31 cm bore MRI

Description

The 9.4T animal scanner was the world’s first ultrahigh field system established at CMRR decades ago. It was recently upgraded to replace the outdated Varian console by the Bruker console as funded by the NIH high-end instrument grant (S10OD032192). It serves the basic and preclinical MRI, MRS, and MRS/I needs for research across the university as well as supporting national and international collaboration projects.

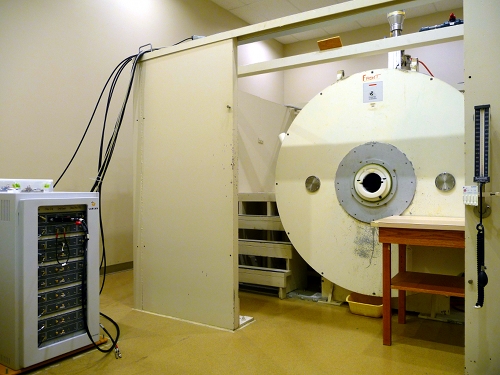

9.4T MRI

Magnet Information

  • Magnet Manufacturer: Siemens
  • Field Strength: 9.4 Tesla
  • Shielding: Passive
  • Bore Diameter: 310 mm
  • Installation Year: 1992
  • Field Homogeneity: 0.1 (100) ppm (mm)
  • Total Mass: 6 tons
  • Windings Length: None km
  • Windings Material: NbTi
  • Helium Bath Volume: 3500 liters
  • Stored Energy: 13.8 MJ

Console

  • Console: Bruker Varian
  • Software Platform: Varian

RF Transmit and Receive Information

  • Number of Receive Channels: 16
  • Number of Transmit Channels: 4
  • Transmit Power (per channel): None kW
  • Combined Mode Transmit Power: None kW
  • X-Nuclei Transmit Power: None kW

Primary Gradient

  • Gradient Model: RRI BFG-270/150-SD14B
  • Maximum Strength: 450 mT/m
  • Slew Rate: None T/m/s
  • Rise Time: 150 µs
  • 2nd Order Shims: True (None A/ch)
  • 3rd Order Shims: False

Clinical & Human Subjects

  • Patient Accessible Bore Size: None mm
  • Bore Length: None mm
  • Clinical Scans: No
  • Human Subjects: No
