7 Tesla/90 cm bore

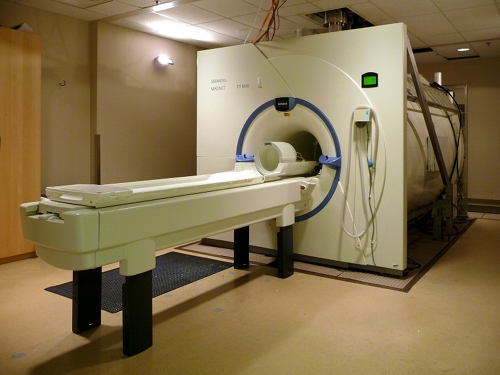

Siemens MAGNETOM 7T

  • Magnet (Agilent 7T/900)
    • Passively shielded (? kg)
    • Weight: 33529 kg
    • bore diameter: 900 mm
    • length: 3366 mm
    • width: 2380 mm
    • 2nd/3rd order supercon shims
    • Homogeneity: 5 ppm (450 mm)
    • Ramp time: 5 days
  • Whole-body gradients
    • 40 mT/m maximum amplitude
    • 200 T/m/s maximum slew rate
    • 2nd-order shims (20A/channel)
    • 60 cm open bore
  • Head-only gradients
    • 80 mT/m maximum amplitude
    • 400 T/m/s maximum slew rate
    • 2nd-order shims (20A/channel)
  • 32 receive channels
  • 16-channel (1kW/channel) broadband RF power amplifier
  • 8 kW broadband RF power amplifier
