The Engineering Core specializes in developing and supporting new technology for the many biomedical applications of high field MRI at the CMRR. For a significant collection of the world’s highest field magnets (Figure 1), the engineers must develop and design new head coils (Figure 3), body coils (Figure 4) and assure their safe and effective use (Figure 2).

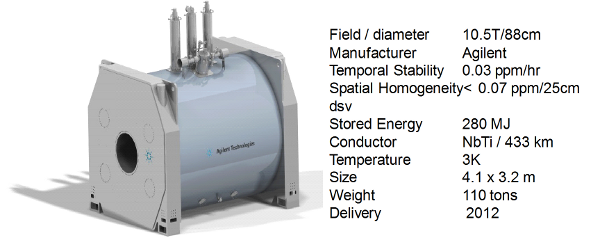

Figure 1. 10.5T Whole body human magnet to be delivered in 2012

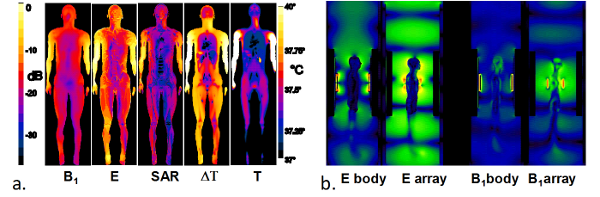

Engineering design begins with modeling. In Figure 2a, electromagnetic propagation and loss is numerically calculated for the B1 field, E field, specific absorption rate (SAR), heating rate dT, and temperature T, for the whole human body exposed to the ultra-high frequencies required to image the body at ultra-high field strengths. (1)

Figure 2. RF propagation and loss calculations for ultra-high field MRI.

Figure 2b shows the graphical electrodynamics of ultra-high-frequency excitation of the body loaded magnet bore space inside a whole body coil, and with a local array. These unique models are critical to understanding and designing both hardware and experimental protocols for safe and successful imaging and spectroscopy at unprecedented field strengths.

Figure 3. RF head coil components for ultra-high field MRI.

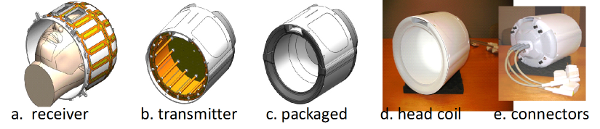

To compensate for shortwave losses and interference patterns in the anatomy, and to enhance radiofrequency (RF) localization and parallel imaging performance, engineers and physicists at the CMRR have invented and employed techniques such as B1 shimming (2) (3) (4), and RF frontend systems incorporating multi-channel transmission. (5) (6) The head coils of Figure 3 and the body coils of Figure 4 demonstrate these advances. In Figure 3, a multi-channel receiver “a” fits into a multi-channel transmitter “b” and is packaged as “c”. The real coil “d” is connectorized for MRI system interface “e”. (7) (8)

Figure 4. Body coil components for ultra-high field MRI.

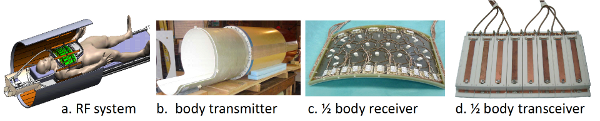

Ultra-high field whole body imaging has also been pioneered at the CMRR. New methods and technology were developed to make this possible. The conceptual drawing of “a” shows a three dimensional, multi-channel body coil used for transmit realized in “b,” enclosing a multi-channel receiver array demonstrated in “c”. A more efficient alternative, the transceiver array is shown in Figure 4d. Typically a pair of receivers “c” or transceivers “d” are used in anterior and posterior positions for body imaging. (9) (10) (11) (12)
